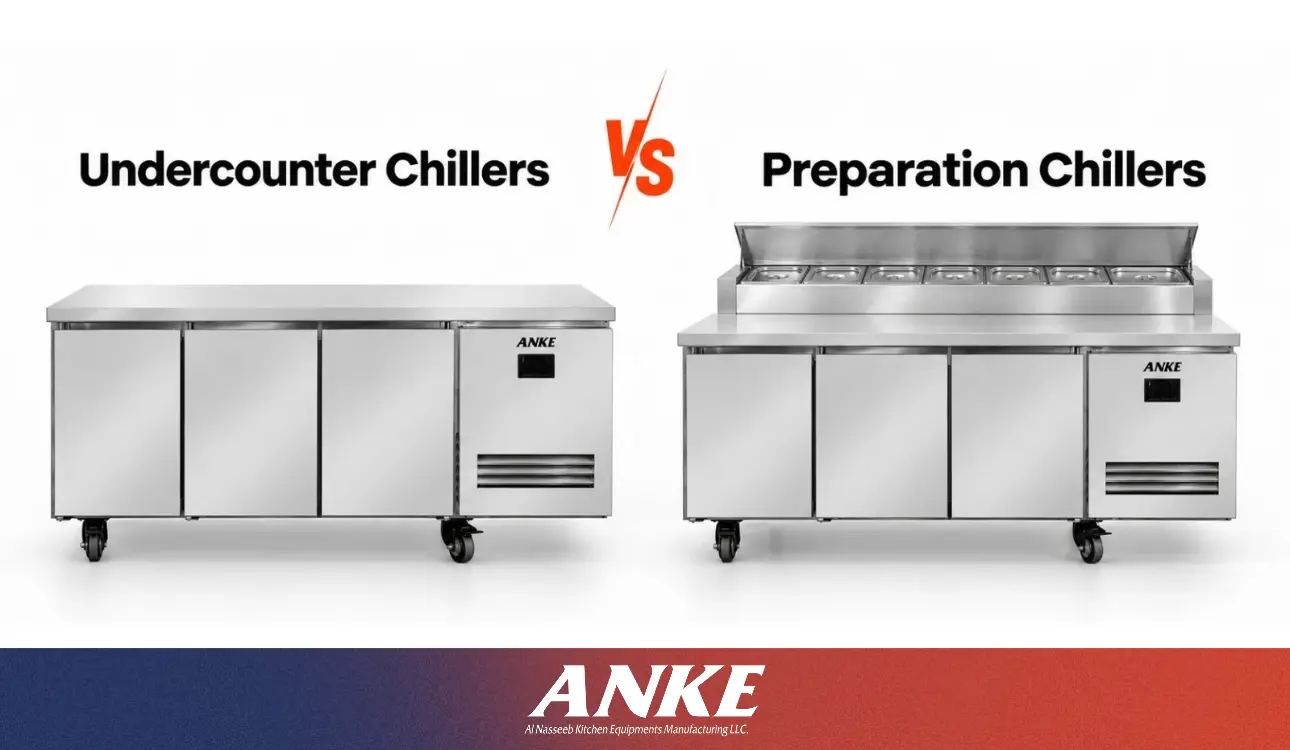

An undercounter chiller provides refrigerated storage beneath a clear working surface. A preparation chiller adds chilled ingredient pans above the refrigerated cabinet for faster food assembly.
Both ANKE formats operate between -2°C and +10°C, but they support different workflows.
Choose an undercounter chiller when you need a clear stainless steel worktop. Choose a preparation chiller when chefs need toppings, fillings or garnishes within immediate reach.
That difference matters in pizza shops, sandwich kitchens, cafés, restaurants and hotel food-preparation areas.
Undercounter Chiller vs Preparation Chiller: Quick Comparison
| Feature | Undercounter Chiller | Preparation Chiller |
| Main use | Refrigerated storage + clear worktop | Ingredient assembly + refrigerated storage |
| Temperature | -2°C to +10°C | -2°C to +10°C |
| Ambient rating | 43°C | 32°C |
| Widths | 900, 1350, 1800 mm | 1500, 2025 mm |
| Worktop height | 850 mm | 850 mm |
| Overall prep section height | 850 mm | 1070 mm |
| Ingredient pan rail | No | GN 1/3 |
| Undercabinet access | Doors or 2/3 drawer banks | Doors with 4/6 drawer options |
| Refrigerant | R290 | R290 |
| Best use | General storage and prep | Pizza, sandwich, salad and assembly |
The simplest distinction is:
Undercounter chiller = clear worktop.
Preparation chiller = chilled ingredients at the workstation.
What Is an Undercounter Chiller?
An undercounter chiller is a commercial refrigerator that combines chilled storage with a usable work surface.
ANKE’s commercial under counter chiller is available in 900, 1350 and 1800 mm widths.
The cabinet operates from -2°C to +10°C and is rated for ambient temperatures up to 43°C.
The clear stainless steel top supports general kitchen work, including:
- food preparation
- plating
- portioning
- tray handling
- small equipment placement where appropriate
The chilled cabinet below keeps ingredients close to the workstation without taking additional floor space.
ANKE undercounter units can also use two- or three-drawer banks when drawer access suits the workflow better than doors.
What Is a Preparation Chiller?
A preparation chiller combines refrigerated cabinet storage with an elevated chilled ingredient rail.
ANKE’s preparation chiller uses GN 1/3 pans above the main cabinet.
These pans keep frequently used ingredients within the chef’s working zone.
Typical ingredients include:
- cheese
- vegetables
- toppings
- garnishes
- sauces
- sandwich fillings
The elevated ingredient section reduces repeated movement between the worktop and the main refrigerated cabinet.
ANKE preparation chillers also use a flip-up stainless steel cover over the ingredient section when the pans are not in active use.
Which Is Better for Pizza, Sandwich and Salad Preparation?
A preparation chiller is the more purpose-built option for high-frequency food assembly.
A pizza chef may need cheese, vegetables, sauces and several toppings for every order. A sandwich or salad station may require the same repeated access to multiple chilled ingredients.
The GN 1/3 rail positions those ingredients close to the operator.
The workflow becomes:
select ingredient → assemble food → move to the next order.
An undercounter chiller stores those same ingredients below the worktop, but the chef must open the refrigerated cabinet or drawer to access them.
The preparation chiller therefore supports faster ingredient access when the menu depends on repeated assembly.
When Is an Undercounter Chiller the Better Choice?
An undercounter chiller is better when the kitchen needs a completely clear working surface.
It also provides more width options.
ANKE undercounter chillers measure:
- 900 mm
- 1350 mm
- 1800 mm
ANKE preparation chillers measure:
- 1500 mm
- 2025 mm
A kitchen with only 1200 mm of available width cannot accommodate a standard 1500 mm preparation chiller.
The undercounter format becomes the practical starting point before drawer configuration or storage capacity is even considered.
This is why refrigeration should be selected alongside the kitchen layout.
Why Does the 43°C vs 32°C Ambient Rating Matter?
The ambient operating rating is one of the most important differences between these ANKE product families.
The undercounter chiller is rated for:
43°C ambient
The preparation chiller is rated for:
32°C ambient
This distinction matters in UAE commercial kitchens.
A refrigerator positioned close to ovens, fryers, griddles or cooking ranges may experience a higher local temperature than a refrigerator positioned in a cold-preparation zone.
The kitchen designer should therefore ask:
What temperature will exist around this refrigerator during peak service?
A preparation chiller can be suitable for UAE kitchens, but its installation location must match the published equipment specification.
Do not choose a refrigerator only from its internal temperature range.
Internal storage temperature and external ambient rating are different attributes.
Why Does the 1070 mm Preparation-Chiller Height Matter?
The main cabinet worktop sits at approximately 850 mm, but the raised ingredient section takes the preparation chiller to approximately 1070 mm overall.
That additional height affects the elevation of the kitchen.
The raised section may interact with:
- wall shelves
- overhead cabinets
- service counters
- kitchen passes
- adjacent equipment
- customer sightlines in open kitchens
A floor plan shows width and depth. It does not show every vertical conflict.
The preparation chiller should therefore be checked in both plan view and elevation view before installation.
Doors or Drawers: Which Storage Format Fits the Workflow?
The storage format should match the ingredients being handled.
Doors provide flexible cabinet space. They suit larger containers, trays and stock that changes frequently.
Drawers provide defined access zones. They suit portioned ingredients and repetitive service.
ANKE undercounter chillers can use two- or three-drawer banks.
ANKE preparation chillers offer four- or six-drawer bank options in the supplied specification.
A preparation station can therefore have two storage levels:
Upper level: fast-moving ingredients in GN 1/3 pans.
Lower level: reserve ingredients inside refrigerated cabinet storage or drawers.
This layout suits operations where the same ingredients are used repeatedly throughout service.
Should You Compare Storage Capacity or Workflow First?
Workflow should come before nominal storage capacity.
A larger refrigerator is not automatically the better refrigerator.
For example, ANKE’s UCC3 undercounter chiller has 253.5 litres of usable volume. The PP-3 preparation chiller has 371.2 litres.
However, these models serve different purposes.
The undercounter prioritises refrigerated storage beneath a clear worktop.
The preparation chiller combines cabinet storage with an elevated ingredient rail.
A buyer should first identify the kitchen task and then compare capacities within the suitable format.
Undercounter vs Prep Chiller: Five Buying Checks
1. Check the menu
A menu with many pizza toppings, sandwich fillings or salad ingredients increases the value of an integrated ingredient rail.
2. Check the available width
The undercounter range starts at 900 mm. The preparation-chiller range starts at 1500 mm.
3. Check the heat around the equipment
The undercounter carries a 43°C ambient rating. The preparation chiller carries a 32°C rating.
4. Check the elevation
The preparation rail increases the overall equipment height to approximately 1070 mm.
5. Check how chefs access ingredients
A clear worktop supports general preparation. An ingredient rail supports repetitive assembly.
These five checks provide a stronger buying decision than comparing litres alone.
What If You Need a Lower Refrigerated Base Instead?
An undercounter and preparation chiller comparison does not cover every refrigerated workstation.
A chef may need refrigerated drawers at a lower height instead of a clear worktop or GN ingredient rail.
In that case, compare an undercounter chiller vs lowboy chiller.
That guide covers the 850 mm undercounter vs 650 mm lowboy decision, including 2, 4 and 6 drawer lowboy configurations.
Keeping these two comparisons separate gives each article one clear search intent:
- Blog 1: undercounter vs lowboy
- Blog 2: undercounter vs preparation chiller
How Do These Products Fit the Wider Refrigeration Range?
Commercial kitchens often need more than one refrigeration format.
A preparation station may use an undercounter or preparation chiller while another section uses upright refrigeration, bottle cooling or frozen storage.
The ANKE commercial refrigeration range includes equipment for different storage temperatures, kitchen layouts and foodservice workflows.
For buyers who are unclear about the difference between chilled and frozen storage terminology, the existing Chiller vs Fridge vs Freezer guide provides the broader temperature context.
These supporting pages should remain informational. The individual product pages should own commercial manufacturer, specification and enquiry intent.
Which Chiller Should Your Kitchen Choose?
| Requirement | Better Starting Point |
| Need a completely clear worktop | Undercounter chiller |
| Need chilled ingredient pans at working level | Preparation chiller |
| Available width below 1500 mm | Undercounter chiller |
| Pizza, sandwich or salad assembly | Preparation chiller |
| Need 43°C ambient-rated unit | Undercounter chiller |
| GN 1/3 ingredient rail required | Preparation chiller |
| General chilled storage beneath prep surface | Undercounter chiller |
| Repetitive access to multiple ingredients | Preparation chiller |
Choose the undercounter chiller for refrigerated storage beneath a clear worktop. Choose the preparation chiller when the workstation must place chilled ingredients directly in front of the chef.
What Should You Check Before Requesting a Quote?
A commercial refrigeration enquiry should include enough information to identify the correct format.
Send ANKE:
- available width, depth and height
- kitchen plan or equipment layout
- nearby heat-producing equipment
- main menu items
- number of ingredients required during service
- preferred door or drawer arrangement
- required working surface
- ventilation conditions around the refrigerator
A pizza, salad or sandwich operation should also state how many chilled ingredients the chef needs simultaneously.
That information helps match the refrigeration configuration to the actual workstation.
Plan Your Refrigeration Station with ANKE
The difference between an undercounter chiller and a preparation chiller comes down to worktop use, ingredient access, available dimensions and ambient conditions.
Choose an ANKE under counter chiller when your kitchen needs refrigerated storage below a clear stainless steel working surface.
Choose an ANKE preparation chiller when your pizza, sandwich, salad or food-assembly station needs chilled GN ingredients within immediate reach.
ANKE manufactures commercial refrigeration solutions for professional kitchens across the UAE.
For a new kitchen, refurbishment or refrigeration replacement, contact ANKE with your layout, menu and available dimensions.
Frequently Asked Questions
What is the main difference between an undercounter chiller and a preparation chiller?
An undercounter chiller provides refrigerated storage beneath a clear worktop. A preparation chiller adds a chilled GN ingredient rail above the refrigerated cabinet.
Is a preparation chiller suitable for pizza?
Yes. A preparation chiller suits pizza assembly because the GN 1/3 rail keeps toppings and other chilled ingredients close to the chef.
Do both chillers use the same temperature range?
ANKE undercounter and preparation chillers both operate from -2°C to +10°C.
Do both chillers have the same ambient rating?
No. ANKE undercounter chillers are rated for 43°C ambient, while the preparation chillers in the supplied specification are rated for 32°C ambient.
What widths are available?
ANKE undercounter chillers are available at 900, 1350 and 1800 mm widths. Preparation chillers are available at 1500 and 2025 mm widths.
Which chiller is better for a sandwich station?
A preparation chiller is usually the stronger option when several chilled fillings need to stay within immediate reach. An undercounter chiller is better when the station needs a completely clear work surface.
Can I use drawers in both formats?
Yes. ANKE undercounter chillers support two- or three-drawer banks. The preparation-chiller specification includes four- and six-drawer bank options.
